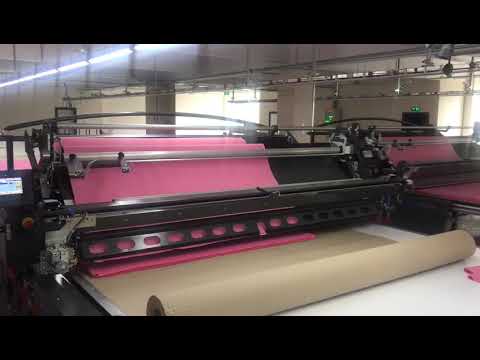

SRM 155E/1800 Series

Fully Automatic Fabric Spreading Machine

Technical Specifications

  • Available Operation Widths : 180/220 cm (different widths on request)

  • Maximum Roll Diameter : 50 cm

  • Maximum Fabric Roll Weight : 60 kg

  • Maximum Spreading Speed : 125 m/min

  • Maximum Spreading Height : 18 cm

  • Power Source : 380 V. 50 Hz, 3 kW


  • Combed woven type is designed for spreading openwork fabrics

  • Assembled for spreading the folded knitted and woven fabric

  • Remote connection (option)

  • Preferable language; Turkish or English

  • Via intensive sensor, the ability to spread the beginning of the fabric in each ply in the some line automatic.(gain fabric)

  • Ability to interfere with the software and spread at fully automatic mode

  • Auto-Stop feature when the roll runs out or pre-recorded number of folds is achieved

  • Ability to unroll or rewind (for Roll Fed Fabrics)

  • Ability to enter different speed choices, in order to save time during idle turns

  • One way or zig-zag spreading features (zig-zag is optional)

  • Spreader system which ascends automatically, in accordance with spreading height

  • Backwards opening cradle and loading extension, enabling easy fabric loading

  • True-sense safe operation, ensured by privileged safety sensors

  • User friendly Touch Screen panel
